QRQ Keyer
Advanced CW keying with Bluetooth connectivity
WinKeyer3 Compatible Bluetooth Keyer
Keyer is primarily developed for learning and practicing telegraphy (high quality side tone and built-in AF amplifier) however, the ability to connect it wirelessly to a PC or smartphone (not iPhone) via Bluetooth virtual RS-232 serial port (internal Bluetooth serial port module) gives keyer wide application.
The aforementioned features make the 9A5N QRQ keyer completely different from other keyers on the global market that use a USB wired connection to a PC and have square waveform side tone that plays on the buzzer.
Specifications
- Side tone of high-quality sine waveform
- Side tone frequency adjustable from 392 to 1397 Hz
- Built-in 1W Hi-Fi AF amplifier
- Side tone volume potentiometer
- AF output for connecting an external speaker or headphones
- AF input for connecting the AF output from the transceiver
- Iambic A/B, Ultimatic, Bug and Straight Key mode
- Adjustable keying speed from 5 to 99 WPM
- CW speed potentiometer with variable setting range
- Farnsworth adjustable CW speed for learning telegraphy
- Auto spacing function for the correct length of pauses between characters
- CW output with MOSFET transistor 60V/500mA
- Bluetooth serial port for wireless connection with a PC, smartphone etc.
- Serial port input buffer with a capacity of 410 characters
- One temporary and 5 permanent message memories with a capacity of up to 1024 characters each
- CW decoder for correct keying control
- Possibility to calibrate the frequency of the microcontroller oscillator
- Compatibility with WinKeyer 3.1 protocol
- Mini USB power supply connector 5V/0.5A max
- Maximum power consumption 2W (depends on the side tone volume)
- Dimensions: 89 x 64 x 35 mm
Order Information
Key Highlights
- High quality sine wave side tone
- Built-in Hi-Fi AF amplifier
- Wireless Bluetooth connectivity
- 5 permanent message memories
- 5-99 WPM adjustable speed

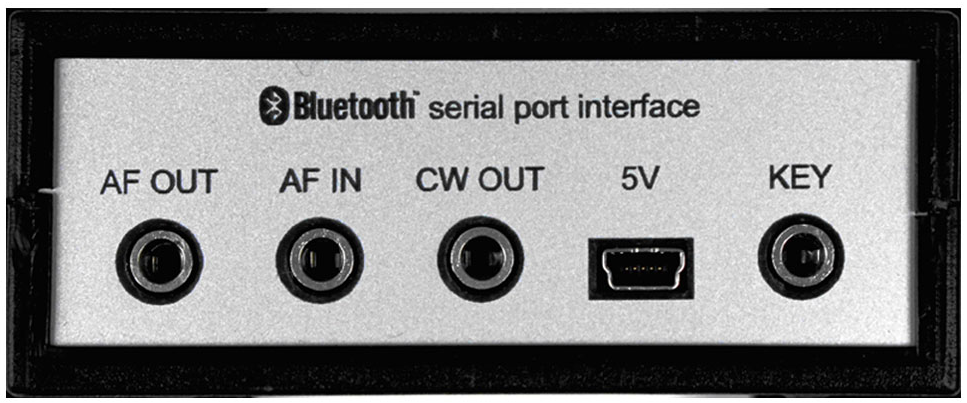

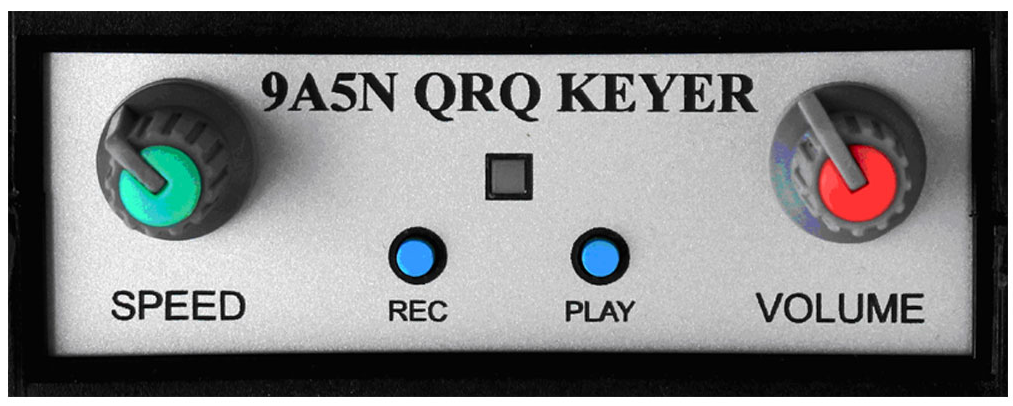

QRQ Keyer Images
WinKeyer Compatibility
The 9A5N QRQ Keyer is fully compatible with the WinKeyer 3.1 protocol, allowing it to work with all popular logging software that supports WinKeyer, including:
- N1MM+
- DXLog
- Win-Test
- Ham Radio Deluxe
- Logger32
- And many more...
Technical Details
Microcontroller
Advanced microcontroller technology ensuring precise timing for dots and dashes, with calibration capability for perfect accuracy.
Audio Quality
High-quality sine wave audio output with adjustable frequency and volume, making it ideal for long practice sessions without fatigue.
Connectivity
Bluetooth serial port connectivity for wireless operation with PCs and Android smartphones, offering freedom from cable clutter.
Keying Options
Multiple keying modes including Iambic A/B, Ultimatic, Bug, and Straight Key, adaptable to every operator's preference.
Ready to Enhance Your CW Experience?
The 9A5N QRQ Keyer offers advanced features, high-quality audio, and wireless connectivity for modern CW operators.
